Description

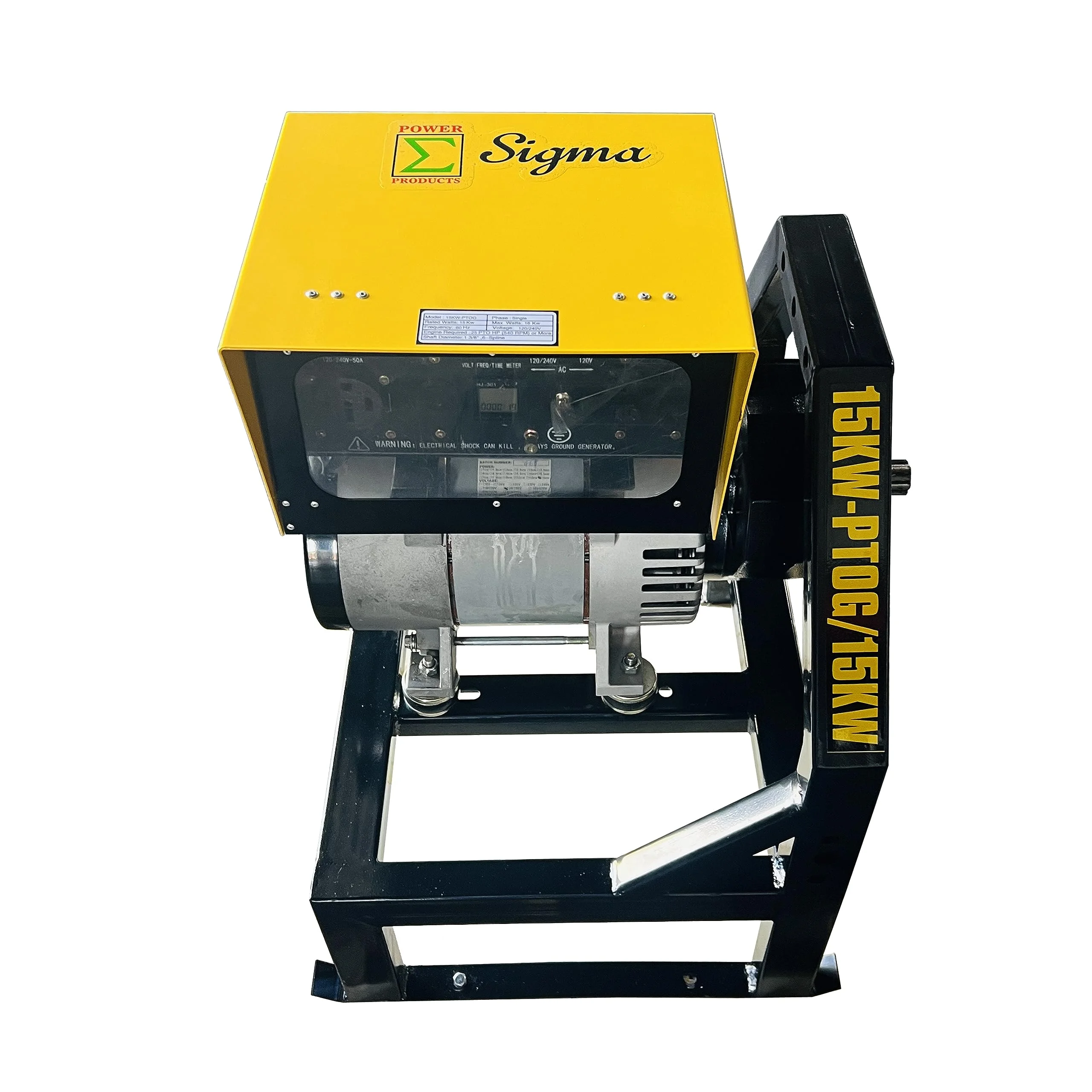

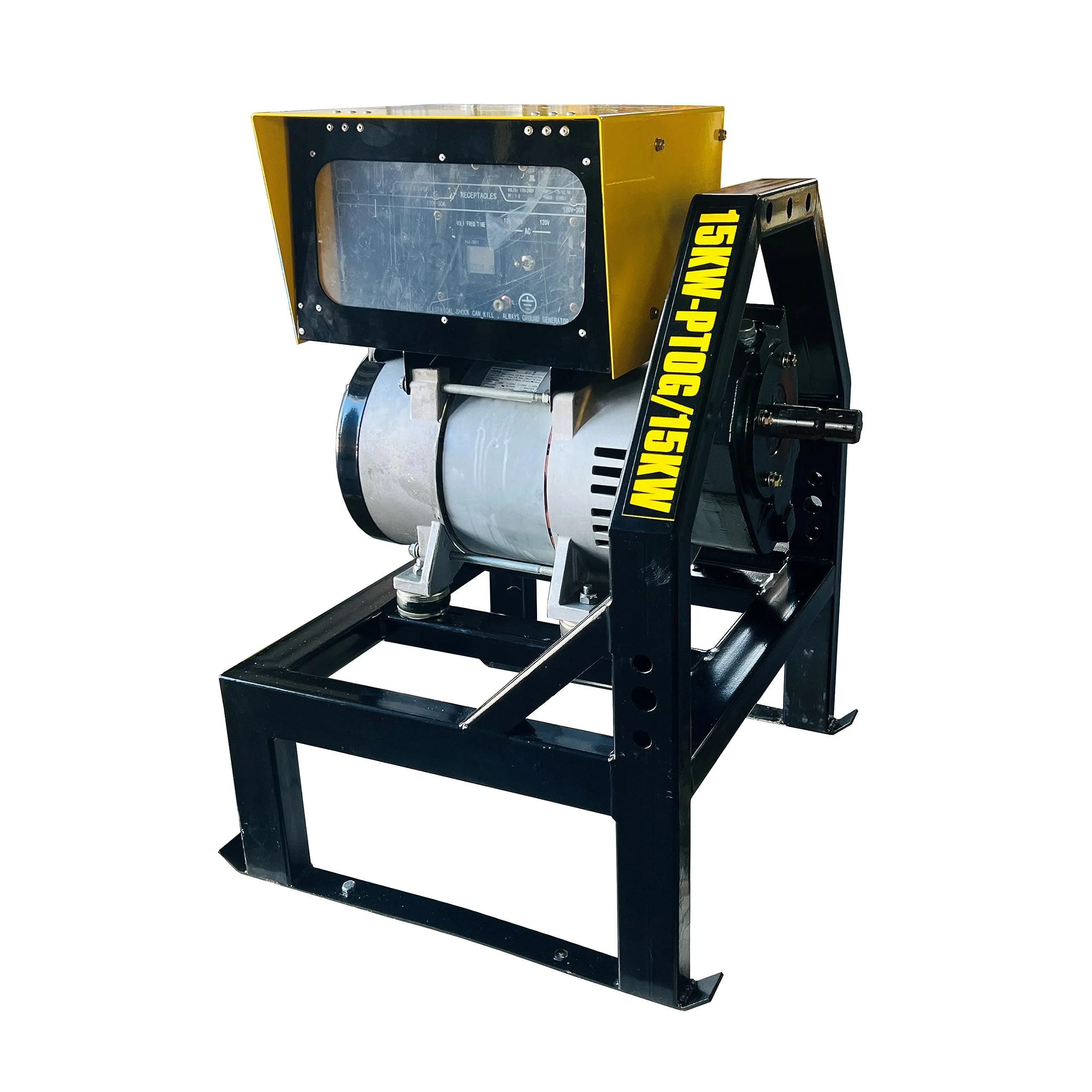

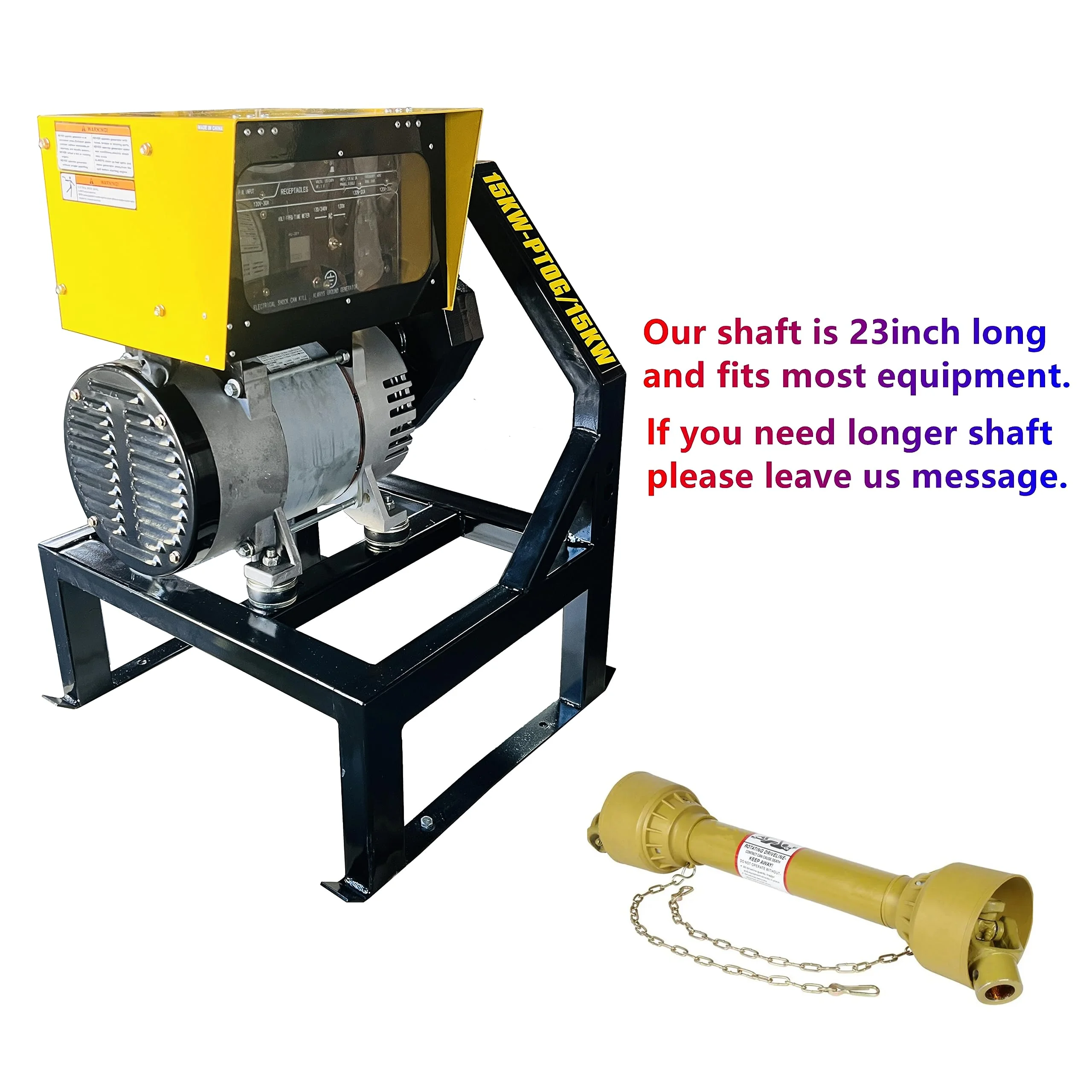

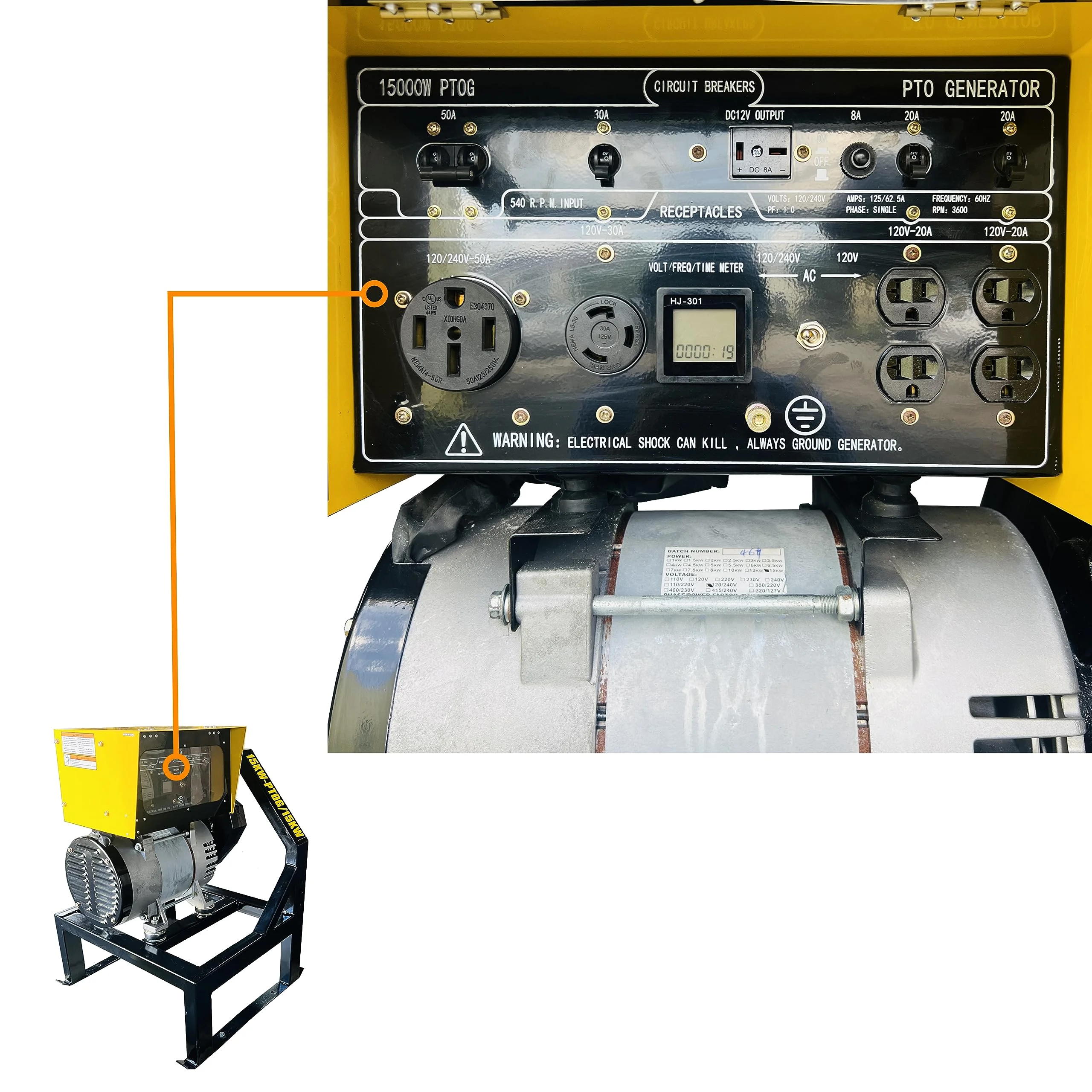

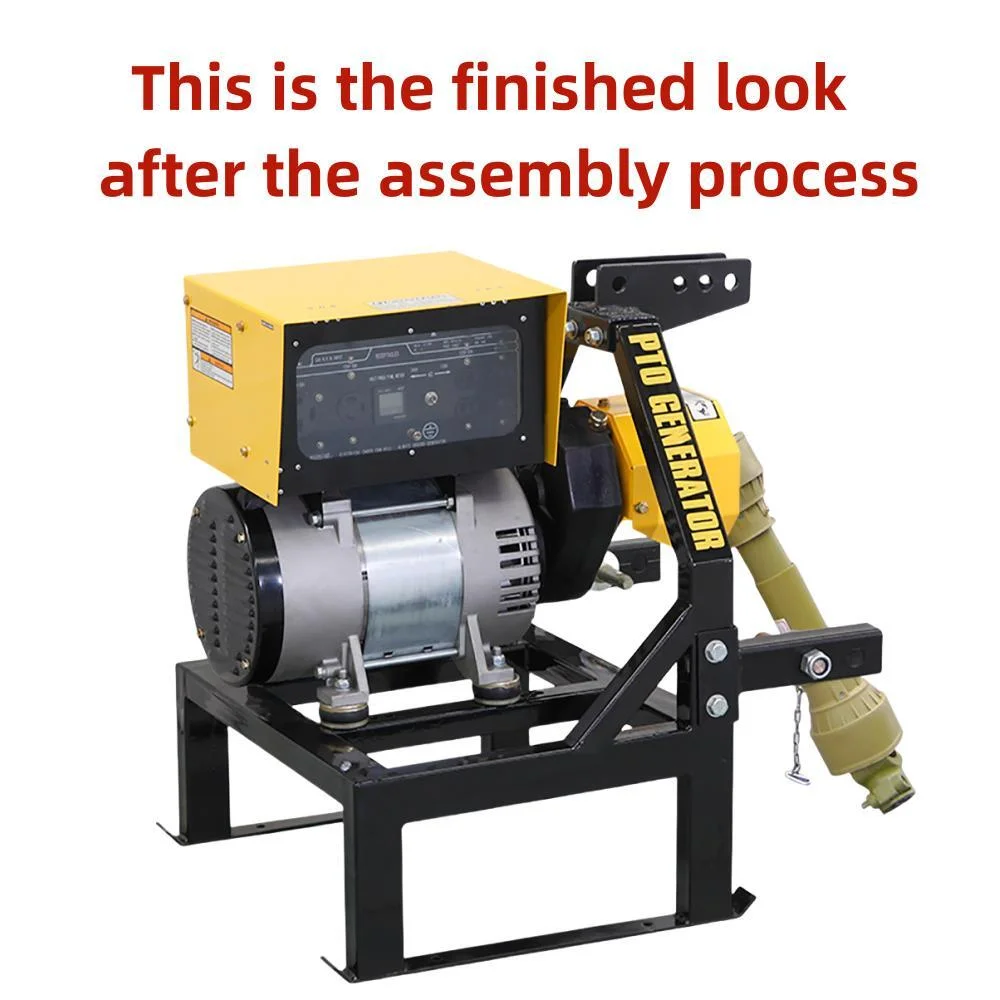

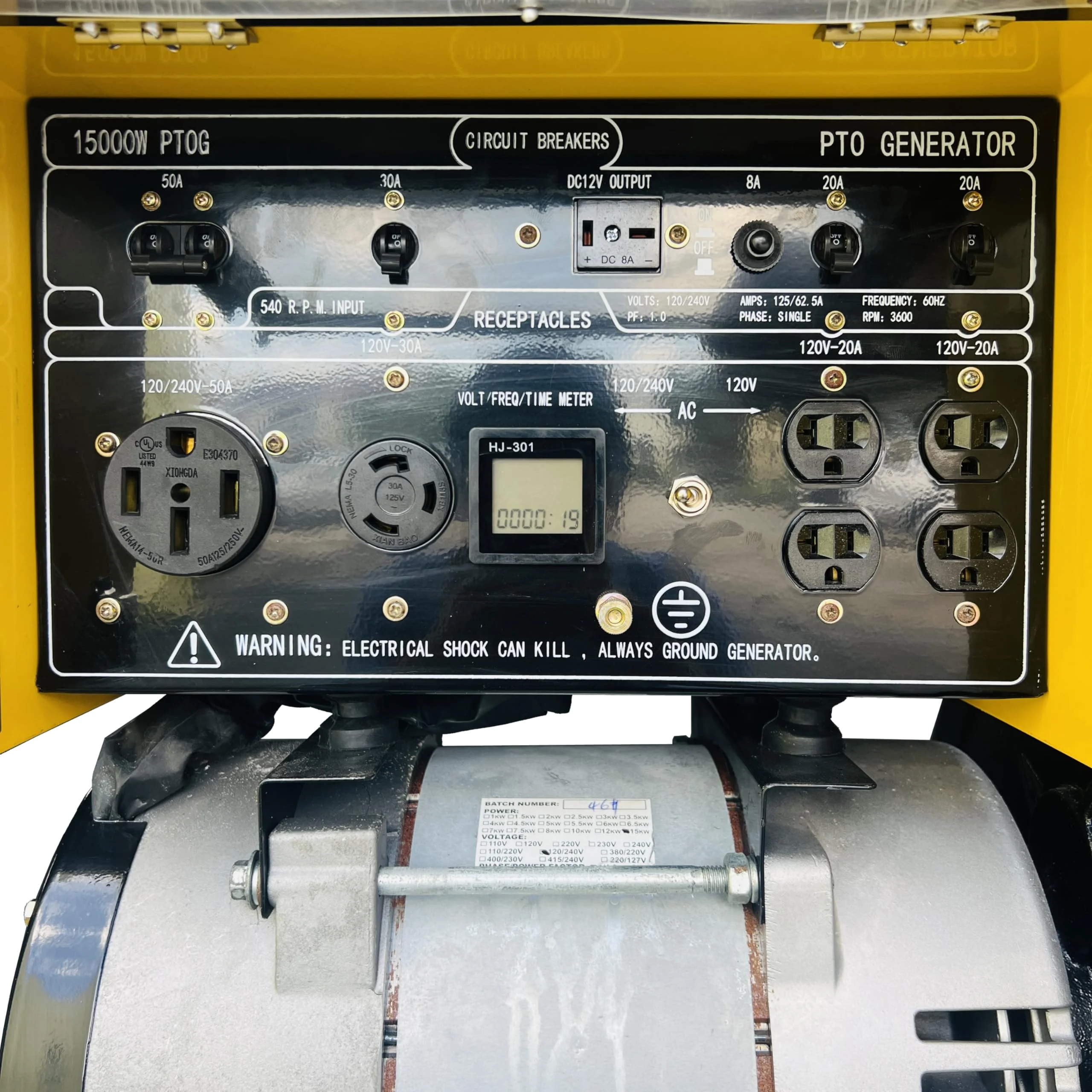

This PTO (power take-off) Electric Alternator 15KW works with small tractors with at least a 30 HP engine to generate clean, efficient power. Generate electricity to power farm or ranch tools when far from a power source or use it as a backup power source for your home during a power outage. This powerful Electric Alternator 15KW includes an output shaft and control panel with two 20 amp, 120 volt outlets, one 30 amp, 120 volt three-blade twist-lock outlet, one 120/240 volt four-prong grounding outlet and one two-prong, 12-volt DC outlet. Control panel has two 20 amp, 120 volt outlets, one 30 amp, 120 volt three-blade twist-lock outlet, one 120/240 volt four-prong grounding outlet and one two-prong, 12 volt DC outlet Two 50 amp, one 30 amp, and two 20 amp circuit breakers Connects to a 1-3/8 in. diameter, 6-tooth spline output shaft that needs to turn at 540 RPM The gearbox input speed is 540 RPM, the generator speed is 3600 RPM, and the gear ratio is 1:6.666. UL listed receptacles and circuit breakers Our output shaft is standard length of 23 inch. Product information: Packing length��32 inch Packing width: 28 inch Packing height: 40 inch Weight�� 380 LBS This PTO (power take-off) Electric Alternator 15KW works with small tractors with at least a 30 HP engine to generate clean, efficient power. Generate electricity to power farm or ranch tools when far from a power source or use it as a backup power source for your home during a power outage. This powerful Electric Alternator 15KW includes an output shaft and control panel with two 20 amp, 120 volt outlets, one 30 amp, 120 volt three-blade twist-lock outlet, one 120/240 volt four-prong grounding outlet and one two-prong, 12-volt DC outlet. Our output shaft is standard length of 23 inch.Our standard output shaft is 23 inches long, but we also offer a 33-inch option. If not specified, we will only ship the generator with the standard 23-inch shaft. The gearbox input speed is 540 RPM, the generator speed is 3600 RPM, and the gear ratio is 1:6.666.
